FIRE-X Adjustable Steel Pedestals

Non-Combustible Steel Adjustable Deck Support

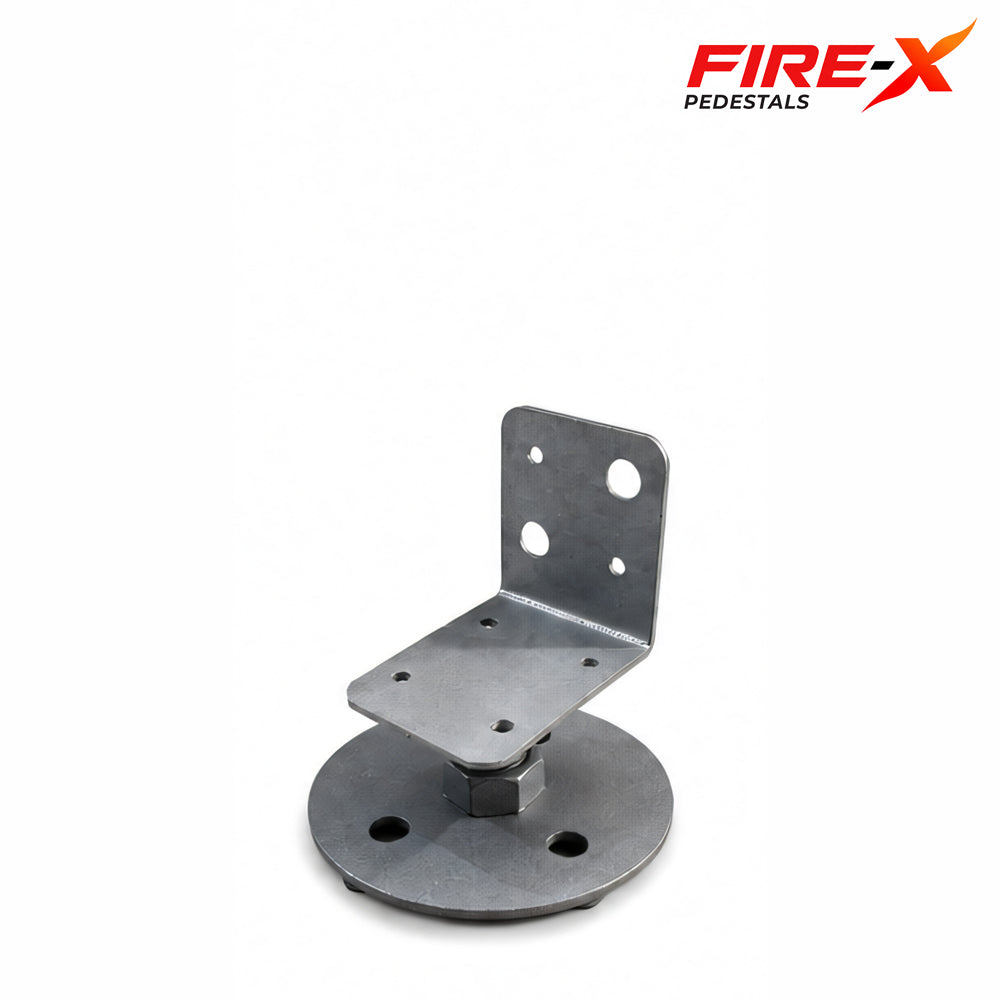

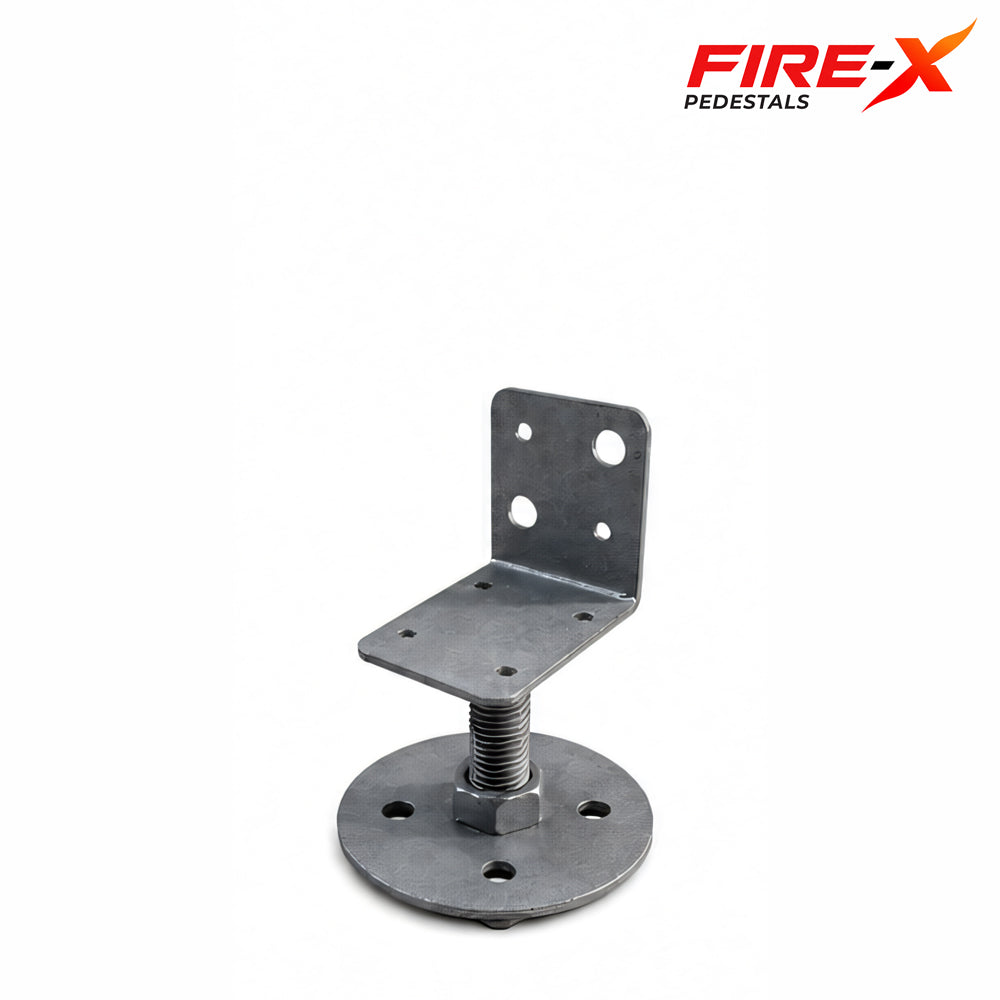

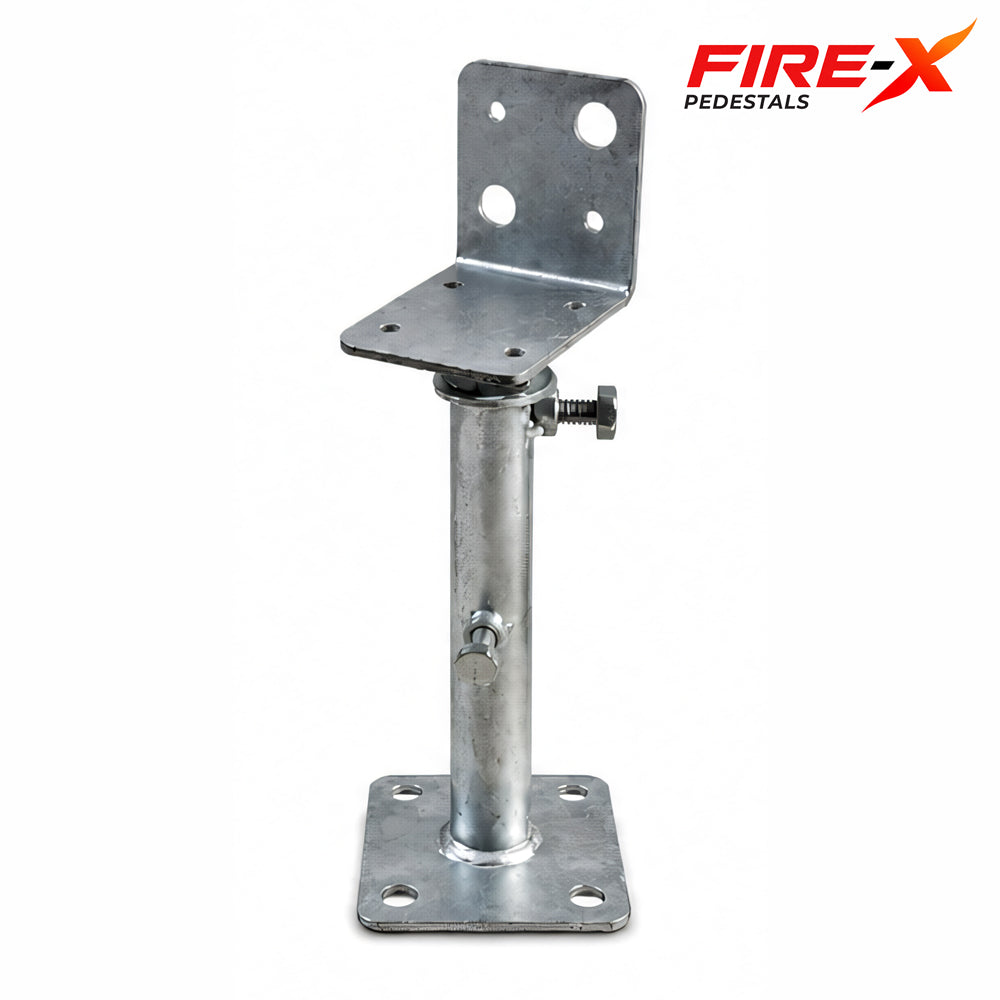

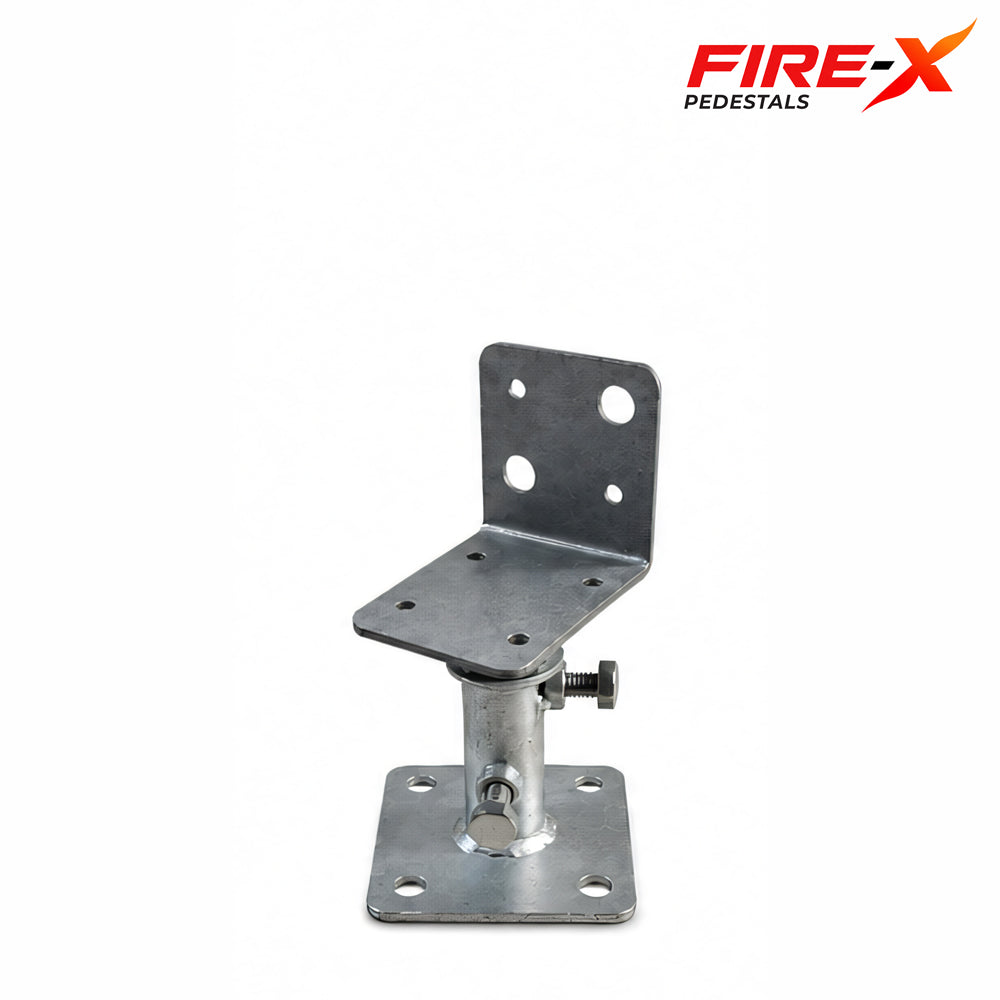

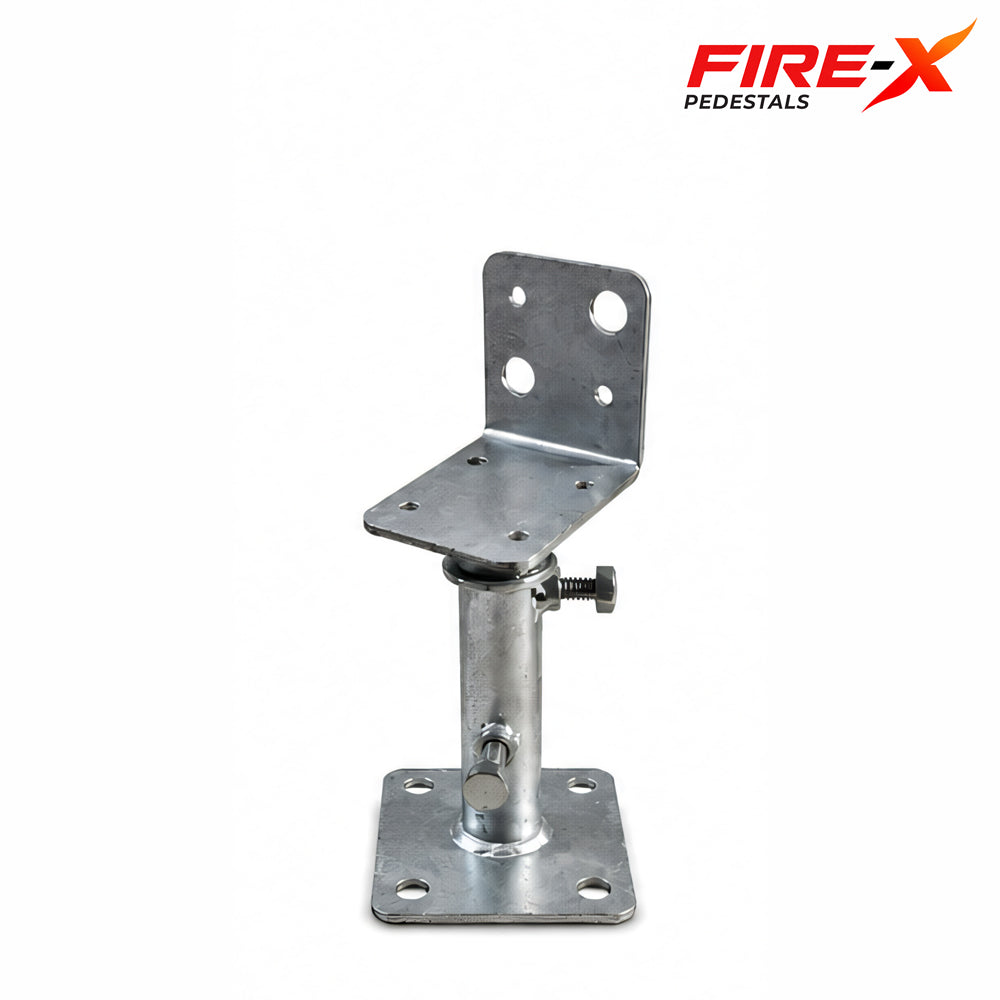

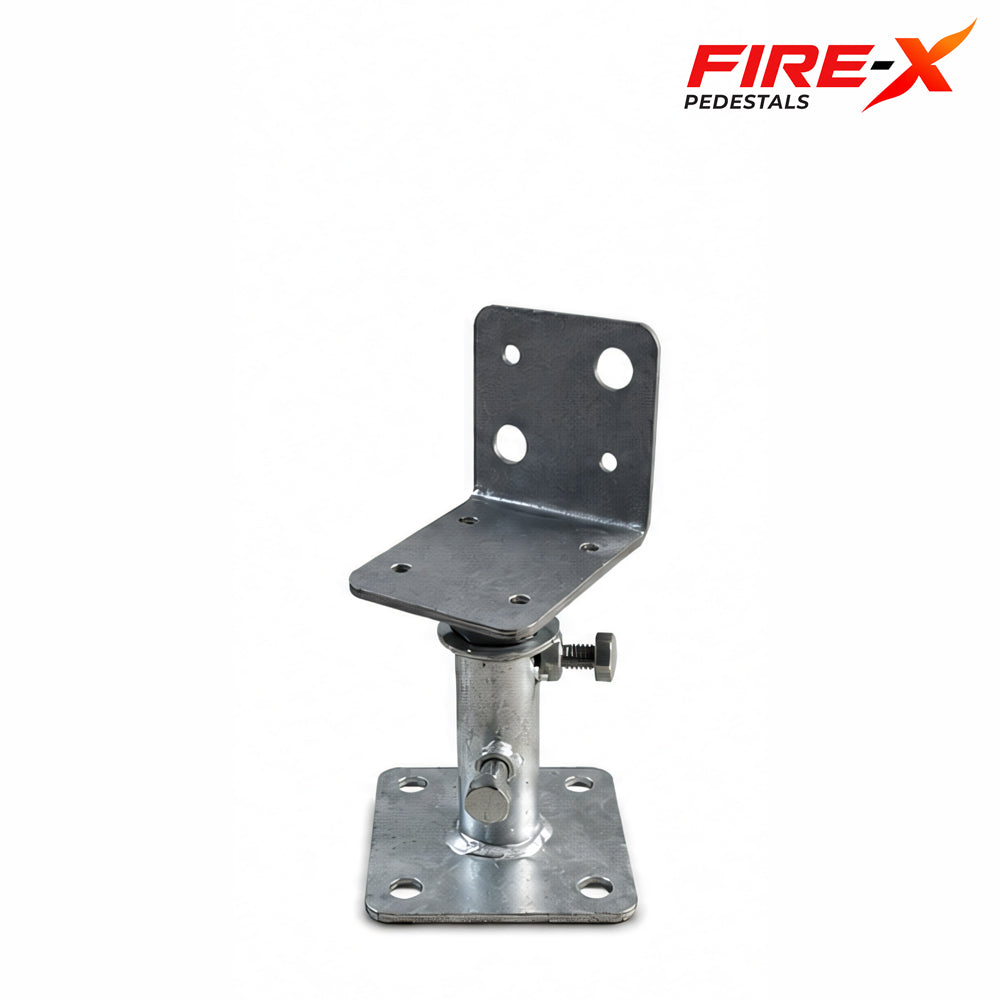

FIRE-X Pedestals are adjustable steel supports for deck framing. Choose from six models with height ranges from 37–50mm to 300–485mm.

Manufactured from hot-dip galvanised steel, FIRE-X Pedestals provide a strong, durable and non-combustible alternative to plastic pedestal systems.

The adjustable threaded head allows the pedestal height to be fine-tuned after the frame and base have been fixed in place, making it easier to achieve accurate levels and make small adjustments during installation.

The integrated L-bracket is designed to support and secure bearers and joists, while the side locking nut helps lock the pedestal in position once the required height has been set.

FIRE-X Pedestals can be used for low-level decks, uneven surfaces, ramps, stairs, post supports, pergolas and remedial support applications.

A Smarter Choice for Fire-Conscious Deck Design

With its non-combustible steel construction, FIRE-X offers an alternative to conventional plastic pedestal systems for projects where material selection and fire-conscious deck design are important considerations.

Models and Adjustable Height Ranges

Shared Specifications

Material: Galvanised steel
Threaded Rod: M24
L-Bracket Width: 65mm
Usable Bracket Height: 70mm
Overall Bracket Height: 73mm
Usable Bracket Base: 87mm
Overall Bracket Base: 90mm
Steel Thickness: 3mm
L-Bracket Holes: 2 × Ø12mm + 2 × Ø6mm
Base Plate: 100 × 100mm
Base Plate Holes: 4 × Ø12mm

Applications

Suitable for:

• Decks
• Ramps
• Stairs
• Post supports
• Pergolas
• Remedial support
• Supporting existing bearers or joists that have sagged over time
